| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | SO/SGS/CE |
| Model Number: | HFX-I |
| Minimum Order Quantity: | 1set |
| Price: | $9000-$12000 |
| Packaging Details: | wood case |
| Delivery Time: | 5-8worker days |
| Payment Terms: | D/A, L/C, D/P, T/T |
| Supply Ability: | 500sets/year |
| Capacity(kg/h): | 100~300 | Voltage(V): | AC380V/50hz |
|---|---|---|---|
| Power(kw): | 2.7 | Weight(kg): | 400 |
| High Light: | Impurities Rejection Shrimp Sorting Machine,Shrimp Color Sorter,Impurities Rejection Shrimp Sorter |
||

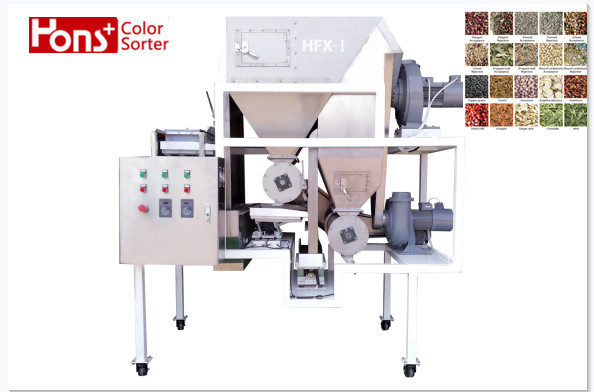

Vacuum Gravity Dried Flower /Sea Food Shrimp Color Sorter For Impurities Rejection
Characteristic
ØN-grade air separation chamber design can do the selection of N + 1 material
ØThe adjustable function of near vacuum environment in the air separation cavity can realize the accurate separation of material
ØNarrow and long separation cavity, which can accurately collect the separated materials
ØDesign of light material collection, reduce the impact of light impurities on the following processing, and effectively solve the dusty problem in the customer site.
Machine parameters
| Sorting Accuracy(%): | ≥99.9 |
| Carryover Rate(bad:good): | ≥12:1 |
| Capacity:(kg/hour) | 100kg-300kg |
| Voltage: | 380V/50Hz |
| Weight(kg): | 400kg |
| Power(Kw) | 3.3Kw |
| Diamension/Size (L*W*H)mm | 1850*1250*1915 |
| Package: | Wooden Case |
Products Description
Used to select various crops seeds(such as seawweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline prodcuts by air and specific gravity.
Firstly,the materilas which transported to the feed hopper through the elevator are dispersed into the first atage box by first and second vibrators.By the air separation, the lightest impurities are collected by the first cyclone cleaner, the heaviest materials fall into second stage box by third and fourth vibrators, the heavier accept mateials will fall into the second outlet to be bagged randomly or enter the next processing flow ,the lighter material will flow out at the third outlet and be exported by the fifth vibrator.The lightest impurities in second air separation are collected from the second cyclone cleaner.
Machine strength
1. Low waste
2. Low consumption
3. High accuracy
4. High throughput
5. Have its own patented valve
6. Superb After-sale service
7. Professional technical guidance
8. High quality imported parts
9. swift reation, high sensitivity, reliable and easy operation.----pro-face screen
Sorting materials
Why choose Hons+
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
