Vacuum Gravity Grading Machine For Dried Roses Flower

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: HFX-II
Minimum Order Quantity: 1 Set
Price: $7500-$14000
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: HFX-II Voltage: AC380V/50HZ
Power: <=2.7KW Size: L 1980mm * W 900mm * H 2100mm
Weight: 218KGS(+/-5%)
High Light:

Dried Flower Grading Machine

,

Dried Roses Grading Machine

,

Vacuum Pressure Winnowing Machine


Product Description

Vacuum Gravity Grading Machine Flower Dried Roses

Descripton

FX series vacuum negative pressure winnowing machine (vacuum negative pressure gravitational separation equipment) is one of the important products of our company, totally different with color sorter, It is separate different materials by the different weight with same color, which can solve the problem color sorter can not do.



Model And Specification

Name Voltage Power Weight Size

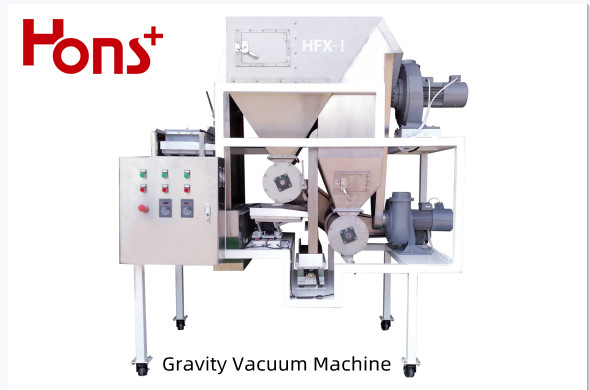

HFX-I AC380V/50HZ <3.3KW 180kgs(+/-5%) L 1980mm * W 900mm * H 2100mm
HFX-II AC380V/50HZ <2.7KW 218Kgs(+/-5%) L 1980mm * W 900mm * H 2100mm

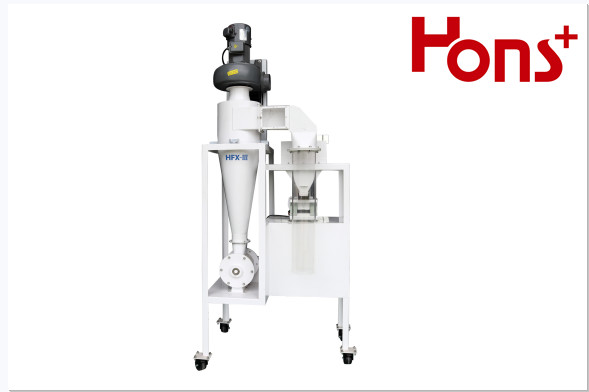

HFX-III AC380V/50HZ <0.75KW 90Kgs(+/-5%) L 925mm * W 580mm H 2100mm




Technical characteristic

1. Smart Suction speed processing

2. Intelligent air flow stepless adjustment.

3. Energy saving , quiet high power motors.

4. System configuration is simple, high classification accuracy.

5. Mobile convenience, cover and area of an area small.



Vacuum Gravity Grading Machine For Dried Roses Flower 0

Firstly,the materilas which transported to the feed hopper through the elevator are dispersed into the first atage box by first and second vibrators.By the air separation, the lightest impurities are collected by the first cyclone cleaner, the heaviest materials fall into second stage box by third and fourth vibrators, the heavier accept mateials will fall into the second outlet to be bagged randomly or enter the next processing flow ,the lighter material will flow out at the third outlet and be exported by the fifth vibrator.The lightest impurities in second air separation are collected from the second cyclone cleaner.

Model And Specification

Name Voltage Power Weight Size
HFX-I AC380V/50HZ <3.3KW 180kgs(+/-5%) L 1980mm * W 900mm * H 2100mm
HFX-II AC380V/50HZ <2.7KW 218Kgs(+/-5%) L 1980mm * W 900mm * H 2100mm
HFX-III AC380V/50HZ <0.75KW 90Kgs(+/-5%) L 925mm * W 580mm H 2100mm


Usage
It can be used to select various crops seeds (such as seaweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline products by air and specific gravity. It has features that are not available in general air screen cleaner

Vacuum Gravity Grading Machine For Dried Roses Flower 1
 Vacuum Gravity Grading Machine For Dried Roses Flower 2
Machine in customer factory
Vacuum Gravity Grading Machine For Dried Roses Flower 3

FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.

2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.

3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.

4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.



About us
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.



Vacuum Gravity Grading Machine For Dried Roses Flower 4
Vacuum Gravity Grading Machine For Dried Roses Flower 5
