| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | Hons |
| Certification: | CE/SGS |
| Model Number: | 6SXM-63(CCD)A |
| Minimum Order Quantity: | 1 pc |
| Price: | $6500-$8500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Supply Ability: | 500sets/month |
| Product Name: | Rice Color Resorter | Input Voltage: | AC220V/50HZ |
|---|---|---|---|
| Capacity(T/H): | 0.6-1T/H | Prouct Size: | L 910mm * W 1620mm * H 1550mm |
| Power(KW): | ≤1.5 | Product Weight: | 350kgs |
| Warranty: | 1 Year | Channel: | 63 Channels |
| CCD Sensor: | Toshiba | Feature: | High Quality FPGA Processing |
| High Light: | Grain Color Sorter 1 Chute,Grain Sorter 63 Channel,High Effective Separator Grain Sorter |
||

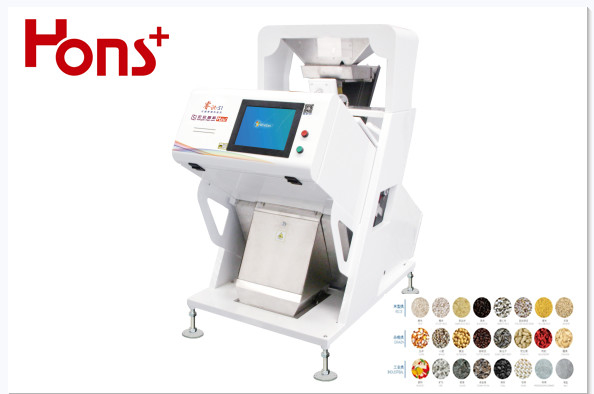

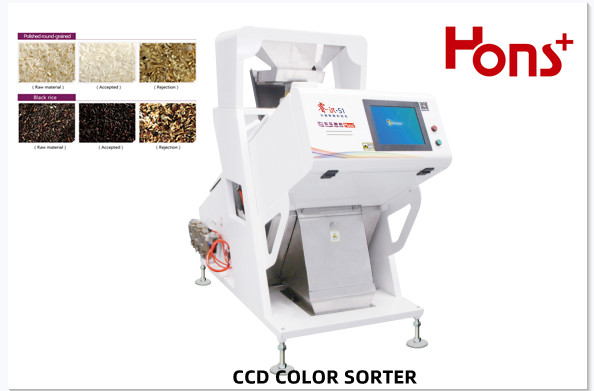

SGS 1 Chute Small Rice Grain Sorter 63 Channel High Effective Separator
SGS Hons 1 Chute Small Rice Grain Sorter 63 Channel High Effective Separator
Product Description:
CCD Camera Intelligent Mini Color Sorting Machine adopts high quality special industrial lenses designed and manufactured for color sorting, the high speed DSP technology provides the sorter with fact detection and high identification rate, overall unit adopts intelligent closed-loop control, When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.Widely used for rice, nuts, wheat, barley, chickpeas, coffee beans, soybeans and buckwheat.
Rice CCD color sorter machine parameters
| Voltage | 220V/50HZ |
| Power | Less than 1.5KW |
| Product weight | 350kgs |
| Product size | L910mm * W 1620mm * H 1550mm |
| Accuracy | ≥99.99 |
| Model | 6SXM-63(CCD)A |
Sorting Materials:
Nuts: peanuts/cashew nuts/walnut meat/pine nuts
Rice: white/black/red/yellow/barley rice
Beans: soybeans/mungbeans/red beans/broad beans
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic
Color Sorter Machine Strengths
1. Automatically collecting hyper space data such as color,shape,size,and defect to achieve accurate acquisition of raw materila features
2. The world's leading full-color linear array scanning technology and DPS+FPGA parallel multi-line pipeline processing technologgy to solve the problem, use multiple intelligent algorithm, high accuracy sorting, special for small speck, light yellow, chalky, discolor.
3. The self-developed magnetically controlled high-frequency solenoid valve achieves flexible contact between devices and has a service life of more than 6 to 10 billion times. Meanwhile, intelligent repair technology reduces maintenance costs and extends liofetime of valve.
4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the material selection requirements and the changes of enviroment to guarantee the sorting perfoermance.
5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple functions of one machine, user-friendly control and easy to operate.
6. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring teh sorting accuracy and improving machine efficient.
Sorting performance
Color Sorter After sale severice
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
Why choose us
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
