| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S6 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$19000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.6 | Dimension(L*W*Hmm): | 2528*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.0t-4.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1400kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

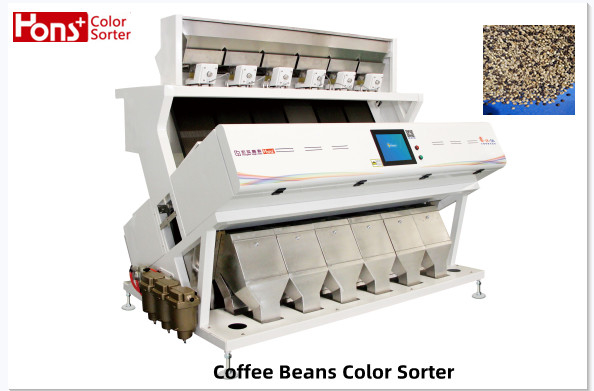

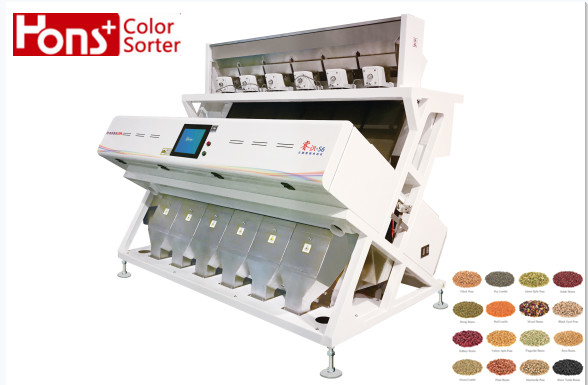

| Product Name: | CCD Color Sorter | ||
| High Light: | Grain Sorter High Sensitivity,Coffee Bean Sorter High Sensitivity,High Sensitivity Rice Sorter |
||
1. The color sorter uses 5400+ high performances CCD sensors with resolution up 0.1mm. 2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting. 3. The high speed FPGA technology signal processor with fast detection and high identification rate. 4. Overall unit adopts intelligent closed-loop control. 5. Simple parameters setting and esay operation. 6. High speed air value is used to ensure quick response, low power consumption and long service life. 7. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine. 8. Failure alarm automation and modular construction makes easy repair.
Technology parameters
Name |
S1 | S2 | S5 | S6 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-378 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1800Kg-3000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <3.6 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1400Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*1550 | 2210*1595*2040 | 2528*1595*2040 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Food material: rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc. Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc. Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
Sorting performance
FAQ
1. How to use the machine?
We will supply customer the installation catalog or video online.
2. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
3. How about the guarantee period?
One year.
4. Will you accept L/C as payment?
L/C, T/T is OK .
5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
