| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | SO/SGS/CE |
| Model Number: | HFX-I |
| Minimum Order Quantity: | 1set |
| Price: | $9000-$12000 |
| Packaging Details: | wood case |
| Delivery Time: | 5-8worker days |
| Payment Terms: | D/A, L/C, D/P, T/T |
| Supply Ability: | 500sets/year |
| Capacity(kg/h): | 100~300 | Voltage(V): | AC380V/50hz |
|---|---|---|---|
| Power(kw): | 2.7 | Weight(kg): | 400 |
| Applied Material: | Dried Flower/Seafood/Shrimp | Light Source: | LED |
| Operation System: | Windows | CCD Sensor: | 54Million Pixel |
| High Light: | Vacuum Gravity Winnower,Seaweed Separator Winnower,Impurities Rejection Winnower |
||

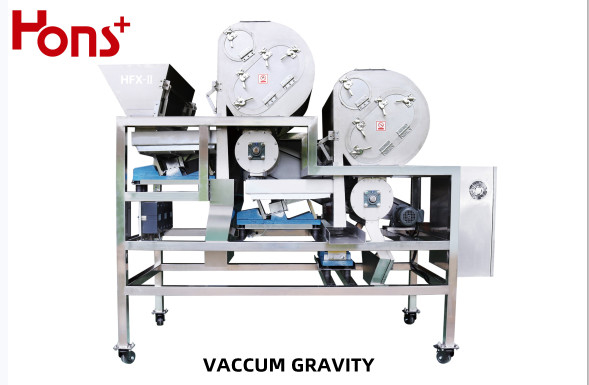

Vacuum Gravity Dried Food Seaweed Spearator Winnower For Impurities Rejection
Characteristic
ØN-grade air separation chamber design can do the selection of N + 1 material
ØThe adjustable function of near vacuum environment in the air separation cavity can realize the accurate separation of material
ØNarrow and long separation cavity, which can accurately collect the separated materials
ØDesign of light material collection, reduce the impact of light impurities on the following processing, and effectively solve the dusty problem in the customer site.
Machine parameters
Sorting Accuracy(%):
|
≥99.9
|
Carryover Rate(bad:good):
|
≥12:1
|
Capacity:(kg/hour)
|
100kg-300kg
|
Voltage:
|
380V/50Hz
|
Weight(kg):
|
400kg
|
Power(Kw)
|
3.3Kw
|
Diamension/Size (L*W*H)mm
|
1850*1250*1915
|
Package:
|
Wooden Case
|
Products Description
Used to select various crops seeds(such as seawweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline prodcuts by air and specific gravity.
Firstly,the materilas which transported to the feed hopper through the elevator are dispersed into the first atage box by first and second vibrators.By the air separation, the lightest impurities are collected by the first cyclone cleaner, the heaviest materials fall into second stage box by third and fourth vibrators, the heavier accept mateials will fall into the second outlet to be bagged randomly or enter the next processing flow ,the lighter material will flow out at the third outlet and be exported by the fifth vibrator.The lightest impurities in second air separation are collected from the second cyclone cleaner.
Sorting materials
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
