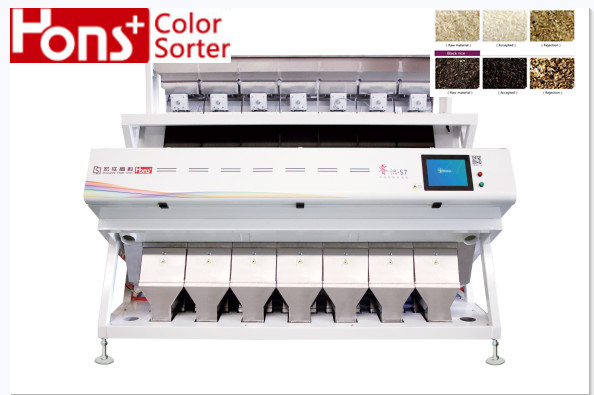

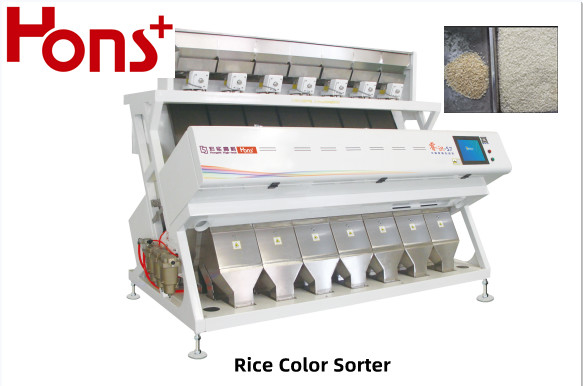

CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S7
Minimum Order Quantity: 1 set
Price: $13500-$20000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 4.0 Dimension(L*W*Hmm): 2836*1595*2040
Capacity(T/h): 3.0t-4.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1600kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter
High Light:

Multiple Function Rice Sorting Machine

,

CCD Grain Color Sorter Machine

,

Multiple Function Grain Color Sorter


Product Description

CCD Camera Rice/Grain Color Sorter Processing Machine 5.0T/H Multiple Function



Main Components

1. High frequency solenoid valve. Flexible contact og the valve plate makes service life of the valves extend to 60~100million times,10~30billion time more compared with other competitors.

2. ShadowlessLED lights can precisely focus the ray on the inspection line. The LED white light can identify any light color differences.

3. Nikon 5400px full color high resolution cameras, even it can recognize the smallest defects.

4. Automatic cleaning system with customized time, duration and delay to keep the machine working without time waste.

5. Humanized operation system is easy to operate. One-key intelligent automatic identify and adjust, meet the requirements of different batches and different impurity rate of the raw material.

Technology parameters




Name
S1 S2 S5 S7
Model 6SXM-63 6SXM-126 6SXM-315 6SXM-441
Capacity(Kg/H) 300Kg-400Kg 300Kg-800Kg 1200Kg-1600Kg 1500Kg-2400Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <3.0 <4.0
Weight(KG) 350Kg 500Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*15500 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 5.5Kw 11kw*2 15kw*2
Air tank   300L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03



CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 0



Sorting materials

Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice

Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea

Tea: green tea/black tea/dark tea/white tea/ yellow tea

Cereals: corn/barley/wheat/oat/sesame/malt

Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed

Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio

Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage

Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar





Sorting performance

CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 1

CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 2

CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 3

FAQ



1. How many days for production?


In general,within8-12workers days after getting deposit payment.


2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.


3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.



Why Choose Hons+:



1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

 CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 4

CCD Camera Rice / Grain Color Sorter Machine 5.0T/H Multiple Function 5
