| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXL-126D |
| Minimum Order Quantity: | 1 Set |
| Price: | $12000-$21000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | SL21 | Capacity: | 500kg /H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.5KW |
| Size: | L 2920mm * W 1220mm * H 1720mm | Weight: | 2300KGS (+/-5%) |
| High Light: | Broken Glass Colour Sorter,Multiple Function Colour Sorter,Plastic Pallet Color Sorter Machine |
||

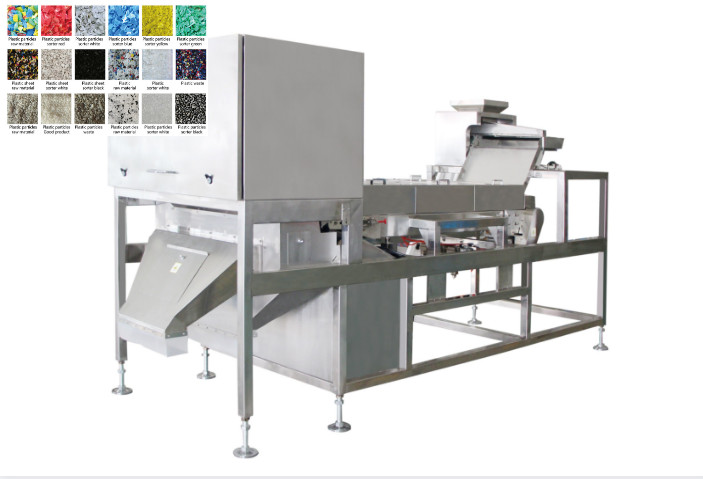

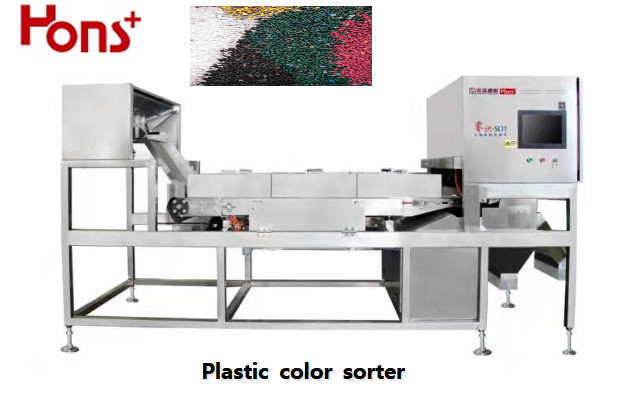

Multiple Function Plastic Pallet/Broken Glass CCD Camera Color Sorter Machine
Belt color sorter machine features
1. Belt horizontal conveying system, with small drop, large output and low material broken rate, is suitable for color sorting of spme special materials with irregular shape. 2. The world's top CCD sensor with ultra-high resolution can be prepared to deal with various materials.The minimum resolution in the range of 0.04MM2, the tiny spots, black spots signal amplification processing needle. 3. Double layer structure design for ore, plastic and other materials with high impurities, the required materials can be extracted at single time sorting. 4.The industial leading intelligent size and shape sorting function can efftively identify the size and shape of materials. 5. Massive database with storage of unlimited modecan achieve multiple function of one machine.
Belt CCD color sorter machine parameters
Brand
|
Hons+
|
Sorting Accuracy(%):
|
≥99.9
|
Carryover Rate(bad:good):
|
≥12:1
|
Capacity:(kg/hour)
|
400Kg-500Kg
|
Voltage:
|
220V/50Hz
|
Weight(kg):
|
2300
|
Diamension/Size (L*W*H)mm
|
2920*1220*1720
|
Package:
|
Wooden Case
|
Selection of materials
Industrial Goods: Quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar Ore/crops/scrap metal/refractory
Chinese traditional medicinal : Licorice/astragalus propinquus schischkin/ salvia miltiorrhiza bge/coastal glehnia root
Food: Dried shrimp/Pecans/peanuts/garlic/dry onion slices/dehydratedcarrot slices/lotus seeds
Sorting perofrmance
Why choose us 1. The leading photoelectric detection and classification equipment supplier in China. 2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry. 3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
