| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$18000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.0t-4.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

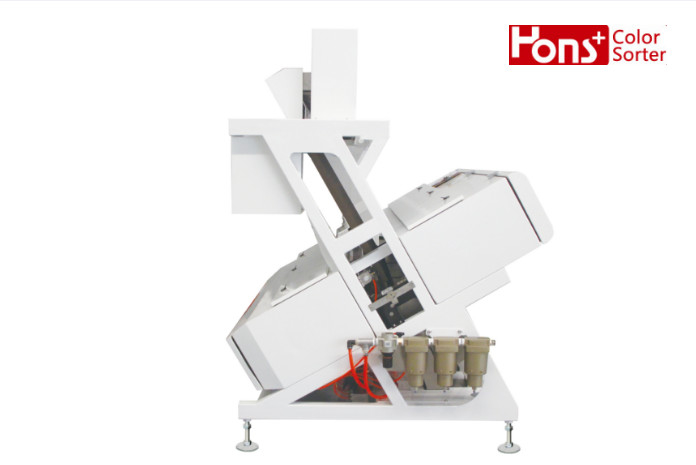

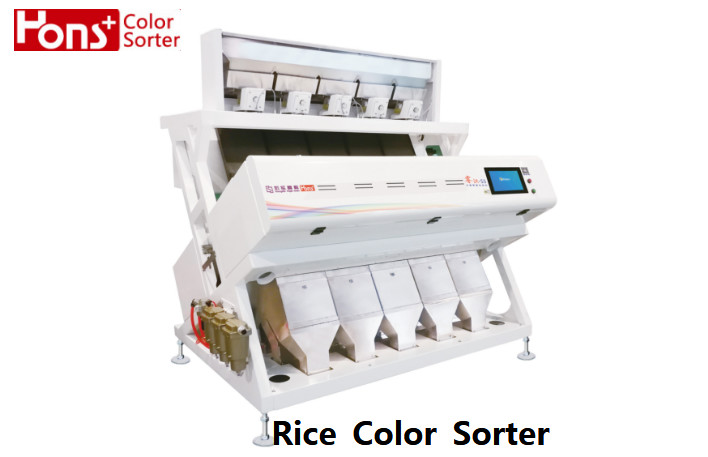

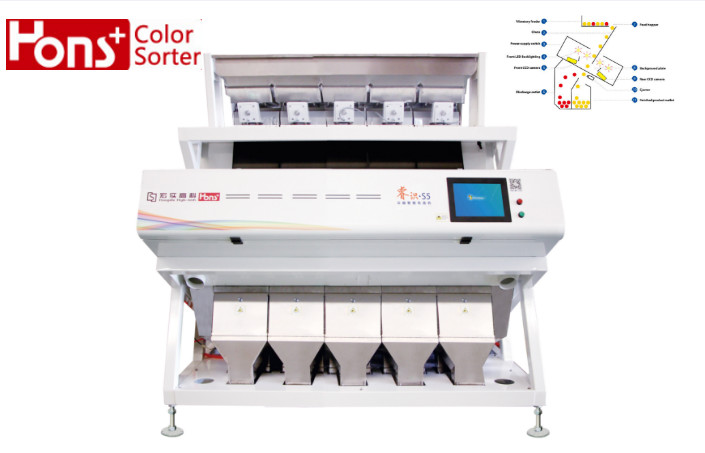

| Product Name: | CCD Color Sorter | Light Source: | LED |
| High Light: | 3.0t/H Cashew Nut Color Sorter,CCD Peanut Color Sorter,Intelligent Peanut Color Sorter |
||
1. The color sorter uses 5400+ high performances CCD sensors with resolution up 0.1mm. 2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting. 3. The high speed FPGA technology signal processor with fast detection and high identification rate. 4. Overall unit adopts intelligent closed-loop control. 5. Simple parameters setting and esay operation. 6. High speed air value is used to ensure quick response, low power consumption and long service life. 7. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine. 8. Failure alarm automation and modular construction makes easy repair.
Technology parameters
Name
|
S1
|
S2
|
S5
|
S6
|
Model
|
6SXM-63
|
6SXM-126
|
6SXM-315
|
6SXM-378
|
Capacity(Kg/H)
|
300Kg-400Kg
|
300Kg-800Kg
|
1200Kg-1600Kg
|
1800Kg-3000Kg
|
Voltage(V)
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
POWER(KW)
|
<1.5
|
<2.0
|
<3.0
|
<3.6
|
Weight(KG)
|
350Kg
|
500Kg
|
1250Kg
|
1400Kg
|
Dimension(L*W*H/MM)
|
910*1620*1550
|
1220*1620*1550
|
2210*1595*2040
|
2528*1595*2040
|
Air Consumption
|
0.9 m³/min
|
1.8m³/min
|
1.8 m³/min
|
3 m³/min
|
Air pressure
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
Air compressor power
|
4kw
|
5.5Kw
|
11kw*2
|
15kw*2
|
Air tank
|
|
300L
|
1000L
|
1000L
|
Cooling Model
|
wind cooling
|
wind cooling
|
wind cooling
|
wind cooling
|
Mini Resolution( mm²)
|
0.03
|
0.03
|
0.03
|
0.03
|
Food material: rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc. Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc. Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
Sorting performance
FAQ
1. How to use the machine?
We will supply customer the installation catalog or video online.
2. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
3. How about the guarantee period?
One year.
4. Will you accept L/C as payment?
L/C, T/T is OK .
5. Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
Why Choose Hons+:
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 20 countries with high praise from customers.
