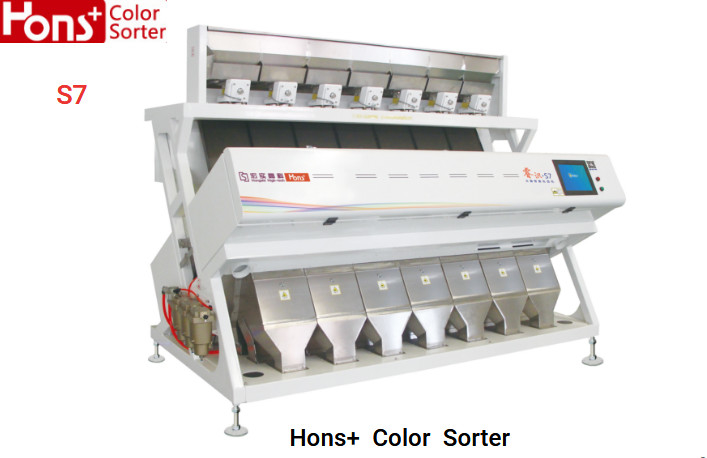

RGB Camera Bean Rice Sorter Machine 3.5t/H Multiple Function

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S7
Minimum Order Quantity: 1 set
Price: $13500-$20000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 4.0 Dimension(L*W*Hmm): 2836*1595*2040
Capacity(T/h): 3.0t-4.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1600kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter
High Light:

RGB Camera Bean Color Sorter

,

Multiple Function Rice Sorter Machine

,

RGB Camera Rice Sorter Machine


Product Description

RGB Camera Rice/Beans CCD Color Sorter Separator Machine 3.5t/H Multiple Function

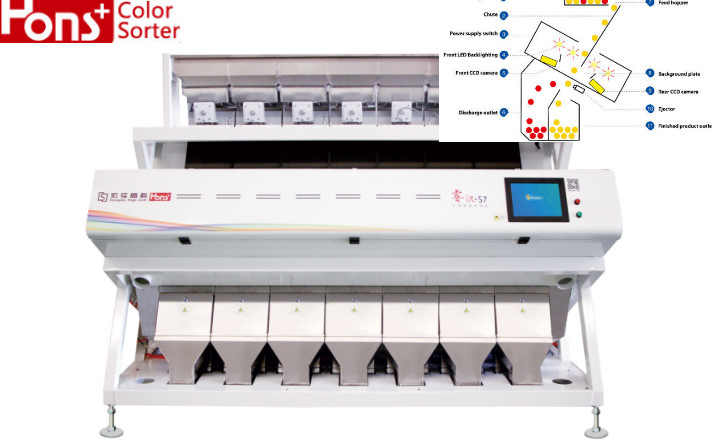

Main Components



1. High frequency solenoid valve
Special color sorting, high frequency, low power consumption,high sorting accuracy.Independently developed intelligent magnetic control high frequency solenoid valve for color sorter.Immediately response speed for valves opening insure sorting accuracy; quickly response speed for valves closing reduces the carry out ratio.Flexible contact og the valve plate makes service life of the valves extend to 60~100million times,10~30billion time more compared with other competitors.

2. ShadowlessLED lights can precisely focus the ray on the inspection line. The LED white light can identify any light color differences.

3. Nikon 5400px full color high resolution cameras, even it can recognize the smallest defects.

4. Automatic cleaning system with customized time, duration and delay to keep the machine working without time waste.

5. Humanized operation system is easy to operate. One-key intelligent automatic identify and adjust, meet the requirements of different batches and different impurity rate of the raw material.

Technology parameters.


Name
S1
S2
S5
S7
Model
6SXM-63
6SXM-126
6SXM-315
6SXM-441
Capacity(Kg/H)
300Kg-400Kg
300Kg-800Kg
1200Kg-1600Kg
1500Kg-2400Kg
Voltage(V)
AC220V/50HZ
AC220V/50HZ
AC220V/50HZ
AC220V/50HZ
POWER(KW)
<1.5
<2.0
<3.0
<4.0
Weight(KG)
350Kg
500Kg
1250Kg
1600Kg
Dimension(L*W*H/MM)
910*1620*1550
1220*1620*15500
2210*1595*2010
2836*1595*1850
Air Consumption
0.9 m³/min
1.8m³/min

1.8 m³/min

3 m³/min
Air pressure
0.6-0.8mpa
0.6-0.8mpa
0.6-0.8mpa
0.6-0.8mpa
Air compressor power
4kw
5.5Kw
11kw*2
15kw*2
Air tank

300L
1000L
1000L
Cooling Model
wind cooling
wind cooling
wind cooling
wind cooling
Mini Resolution( mm²)
0.03
0.03
0.03
0.03



RGB Camera Bean Rice Sorter Machine 3.5t/H Multiple Function 0

Sorting materials

Nuts: peanuts/cashew nuts/walnut meat/pine nuts

Rice: white/black/red/yellow/barley rice

Beans: soybeans/mungbeans/red beans/broad beans

Wheat: buckwheat/quinoa/oatmeal

Corn: corn particles/white corn/ ellowcorn/black corn

Dry food: dry onion/ raisins/dried chilli

Seeds: sunflower seeds/ rice seeds/ vegetable seeds

Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic



Sorting performance









FAQ


1. How many days for production?
In general,within8-12workers days after getting deposit payment.

2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.

Why Choose Hons+:

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

 RGB Camera Bean Rice Sorter Machine 3.5t/H Multiple Function 1

RGB Camera Bean Rice Sorter Machine 3.5t/H Multiple Function 2
