Type: | S4 | Capacity: | 3.0~6.0 T/H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | 2.6Kw |
Size: | L 1870mm * W 1595mm * H 2040mm | Weight: | 1000Kgs (+/-5%) |
Applied Materials: | Rice/beans/cashew Nut/peanut/walnut | Sorting Accuracey: | 99%-99.9% |
High Light: | Intelligent Coffee Bean Color Sorter,Intelligent Color Sorting Machine,4 Chutes Coffee Bean Sorting Machine |

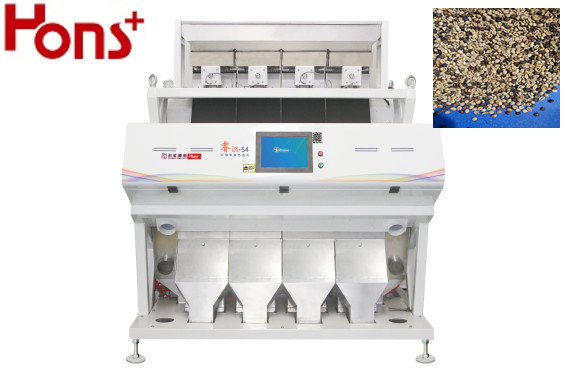

4 Chutes RGB Camera Coffee Beans Intelligent Color Sorting Separator Machine
Characteristics
1. High-resolution ultra-low distortion micron camera imaging system, with stepless adjustment of LED light source, brings unprecedented accurate identification.
2. Intel's fifth-generation FPGA processing, faster speed, lower power consumption, and more stable system operation.
3. Digital stepless dimming, automatically matching brightness according to material changes.
4. Independent sorting mode, different needs, arbitrary collocation.
5. Dedicated double lens, accurate identification and high net selection rate.
CCD color sorter machine parameters
Name | S1 | S3 | S4 | S5 | S7 |
Model | 6SXM-63 | 6SXM-252 | 6SXM-252 | 6SXM- 315 | 6SXM-441 |
Capacity(T/H) | 0.8-1.0 | 1.6-2.2 | 2.4-3.0 | 3.0-4.0 | 4.0-6.0 |
Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
POWER(KW) | <1.5 | <2.4 | 2.6 | 3.0 | <4.0 |
Weight(KG) | 350 | 800 | 1000 | 1250 | 1600 |
Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 1870*1595*2040 | 2210*1595*2040 | 2836*1595*2040 |
Air compressor power | 4kw | 5.5kw | 11kw | 11KW*2 | 22kw |
Sorter Applcation
Food materials: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others. Mineral materials: Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others. Plastic materials: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Sorting Result
After sale severice
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
6. Video outgoing-inspection provided .
