| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXL-126D |
| Minimum Order Quantity: | 1 Set |
| Price: | $12000-$21000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | SL21 | Capacity: | 500kg /H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.5KW |
| Size: | L 2920mm * W 1220mm * H 1720mm | Weight: | 2300KGS (+/-5%) |
| Applied Materials: | Plastic/broken Glass/ore/quarze | Sorting Accuracy: | 99-99.9% |
| High Light: | Plastic Flake Belt Color Sorting Machine,CCD Color Sorter 500kg/H,Remote Control Belt Color Sorting Machine |
||

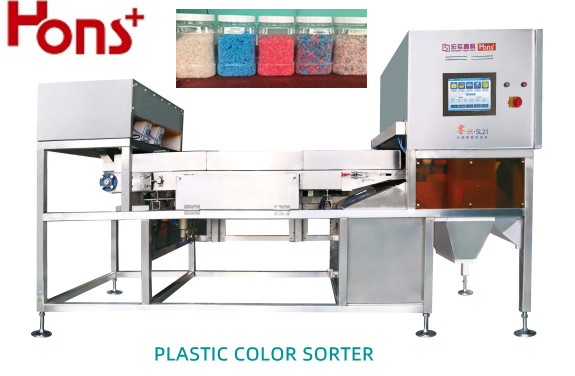

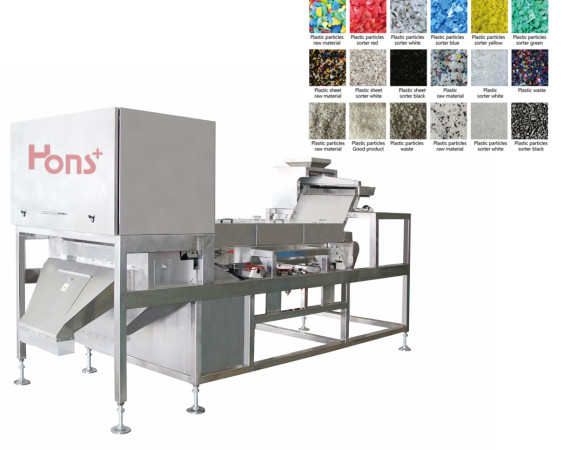

CCD Remote Control Plastic Flake/Bottles Belt Color Sorting Machine 500kg/H
Selection of materials
Industrial Goods: Quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar Ore/crops/scrap metal/refractoryChinese
Traditional medicinal : Licorice/astragalus propinquus schischkin/ salvia miltiorrhiza bge/coastal glehnia root
Food: Dried shrimp/Pecans/peanuts/garlic/dry onion slices/dehydratedcarrot slices/lotus seeds
Belt CCD color sorter machine parameters
Brand
|
Hons+
|
Sorting Accuracy(%):
|
≥99.9
|
Carryover Rate(bad:good):
|
≥12:1
|
Capacity:(kg/hour)
|
400Kg-500Kg
|
Voltage:
|
220V/50Hz
|
Weight(kg):
|
2300
|
Diamension/Size (L*W*H)mm
|
2920*1220*1720
|
Package:
|
Wooden Case
|
Belt color sorter machine features 1. The color sorter uses 5400 high performances CCD sensors with resolution up to 0.02nm2. 2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rice. 3. The high speed DSP technology provides the sorter with fast dection and high identification rate.The special coarse ceral detection algorithm is designed. 4. Master control system , effectively enhance control speed and color selection precision. 5. Overall unit adopts intelligent closed-loop control. 6. HIgh speed air valve is used to ensure quick response,low power consumption and long service life. 7. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
After sale severice
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
6. Video outgoing-inspection provided .
