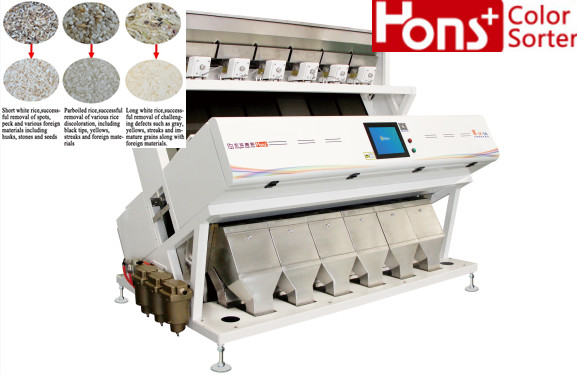

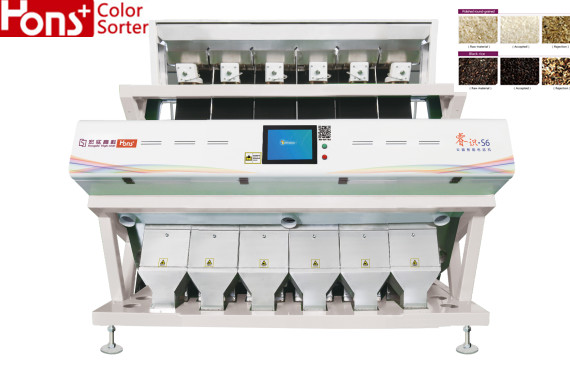

Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S6
Minimum Order Quantity: 1 set
Price: $13500-$19000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 3.6 Dimension(L*W*Hmm): 2528*1595*2040
Capacity(T/h): 3.0t-4.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1400kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter Sorting Accuracy: 99.9%
High Light:

Rice Sorting Machine High Sensitivity

,

High Sensitivity Rice Colour Sorter

,

3.0t/H Rice Colour Sorter


Product Description



3.0t/H CCD Remote Control Rice Colour Sorter High Sensitivity Separator Machine

Main Features

1. The color sorter adopts 5400+ high-performance CCD sensor with a resolution of 0.1mm.

2. The sorting machine adopts high-quality industrial special lenses specially designed and manufactured for color sorting.

3. High-speed FPGA technology signal processor, fast detection speed and high recognition rate.

4. The whole machine adopts intelligent closed-loop control.

5. The parameter setting is simple and the operation is simple.

6. Adopt high-speed air volume value to ensure fast response, low power consumption and long service life.

7. The sorting machine adopts intelligent temperature and air pressure control technology to ensure the best operation mode of the whole machine.

8. Automatic fault alarm, modular structure, easy maintenance.



Technology parameters


Name
S1 S2 S5 S6
Model 6SXM-63 6SXM-126 6SXM-315 6SXM-378
Capacity(Kg/H) 300Kg-400Kg 300Kg-800Kg 1200Kg-1600Kg 1800Kg-3000Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <3.0 <3.6
Weight(KG) 350Kg 500Kg 1250Kg 1400Kg
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*1550 2210*1595*2040 2528*1595*2040
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 5.5Kw 11kw*2 15kw*2
Air tank   300L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03



Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 0



Sorting materials


Food material: rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc.


Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc.
Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.



Sorting performance

 Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 1

Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 2



Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 3



FAQ


1. How to use the machine?
We will supply customer the installation catalog or video online.

2. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.

3. How about the guarantee period?
One year.

4. Will you accept L/C as payment?
L/C, T/T is OK .

5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .



Why Choose Hons+:

1. More than 10 years of experience focusing on sorters. One of the most advanced manufacturers in Hefei, Anhui.
2. After-sales service guarantee: We have a professional after-sales service team, one-to-one customer service to help customers install and debug.

3. Raw material quality assurance: The raw materials we purchase are all certified qualified products.
4. Quality process assurance: We have passed CE and ISO quality management system certification, and each production process is carried out under strict standards.

5. Delivery guarantee: We have a professional packaging operation team and independent export qualifications to ensure that the products are delivered to customers safely and stably.

 Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 4

Remote Control CCD Rice Colour Sorter High Sensitivity 3.0t/H 5
