| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S7 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$20000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.0t-4.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

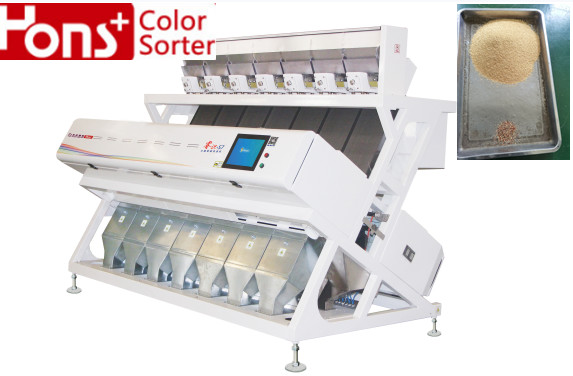

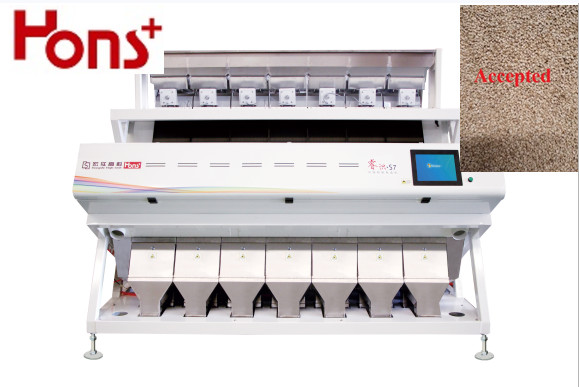

| Product Name: | CCD Color Sorter | Sorting Accuracy: | 99.9% |
| High Light: | Quinoa Colour Sorter Machine,Color Sorting Machine Intelligent,Quinoa Color Sorting Machine |
||
1. The infrared color sorter includes a color LED camera system and a near-infrared spectrum lighting system.
2. The color LED lighting system can select different spectrum lighting according to different raw materials to improve the contrast of the main features and ensure that the obtained material information is more accurate.
3. LED lighting systems with heat dissipation have long service life, low energy consumption and good performance. The near-infrared spectrum lighting system adopts the light source imported from Germany.
4. Uniform lighting, low energy consumption and stable performance.
Technology parameters
Name |
S1 | S2 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar
Sorting performance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
