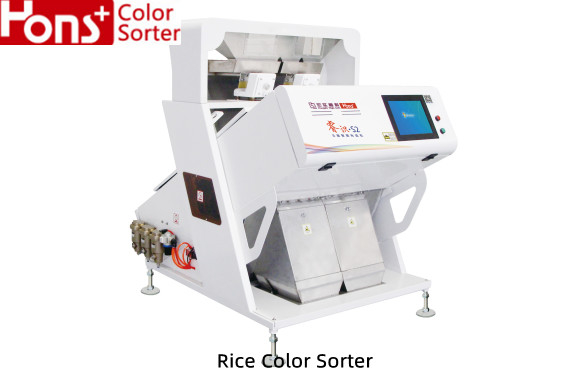

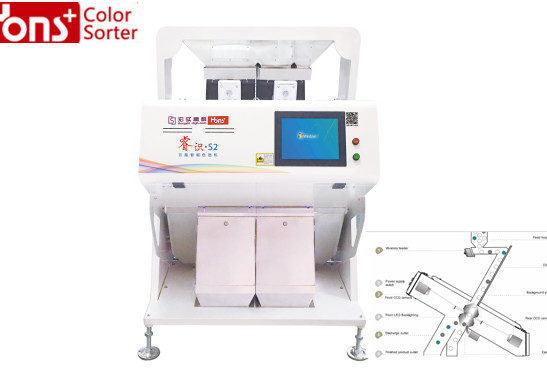

Rice Mill Grain CCD Color Sorter 126 Channels 2 Chutes

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons
Certification: CE/SGS
Model Number: 6SXM-126(CCD)A
Minimum Order Quantity: 1 pc
Price: $7500-$12000
Packaging Details: Export standard wooden cases
Delivery Time: 5-8 working days
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 500sets/month
Detail Information
Product Name: CCD Color Resorter Input Voltage: AC220V/50HZ
Capacity(T/H): 1.2-2.5T/H Prouct Size: L 1220mm * W 1620mm * H 1550mm
Power(KW): ≤2 Warranty: 1 Year
CCD Sensor: Toshiba Feature: High Quality FPGA Processing
Channels: 126 LED Source: LED Lamps
High Light:

Two Chutes Grain Color Sorter


126 Channel CCD Color Sorter


Two Chute CCD Color Sorter

Product Description

Rice Mill Grain CCD Colour Sorter 126 Channels 2 Chutes Processing Machine


Sorting Materials:


Nuts: peanuts/cashew nuts/walnut meat/pine nuts

Rice: white/black/red/yellow/barley rice

Beans: soybeans/mungbeans/red beans/broad beans

Wheat: buckwheat/quinoa/oatmeal

Corn: corn particles/white corn/ ellowcorn/black corn

Dry food: dry onion/ raisins/dried chilli

Seeds: sunflower seeds/ rice seeds/ vegetable seeds

Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic


Rice CCD color sorter machine parameters

Less than 2 KW
Product weight
Product size
L1220mm * W 1620mm * H 1550mm


Technical parameter

1. Advanced image acquisition system
Capture clear and accurate images with color classifiers using high-resolution monochrome cameras or RGB cameras (5000+ pixels) and high-quality (Tosiba) industrial lenses. The camera can instantly pick up microscopically flawed materials.
2. Intelligent image processing algorithm
Sorting algorithms, such as grayscale, color difference, and HSV, perfectly combine shape sorting algorithms, such as size, roundness, and texture, to successfully solve a series of difficult color sorting problems and greatly improve classification accuracy.
3. Unique chute processing technology
Special anodizing and hardening technology can greatly improve the smoothness and wear resistance of the channel to ensure high output.
4. High quality solenoid valve
Equipped with high quality solenoid valve with optical sorter. Self-developed intelligent magnetic control high-frequency solenoid valve.

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 0


Sorting performance


Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 1

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 2
Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 3


After sale service


1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.


Why choose us

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

 Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 4

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 5

Rice Mill Grain CCD Color Sorter 126 Channels 2 Chutes 6
