CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: 6SXL-126D
Minimum Order Quantity: 1 Set
Price: $12000-$21000
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: SL21 Capacity: 500kg /H
Voltage: AC220V/50HZ Power: 2.5KW
Size: L 2920mm * W 1220mm * H 1720mm Weight: 2300KGS (+/-5%)
High Light:

CCD Camera Quartz Sorting Machine

,

Remote Control Quartz Sorting Machine

,

CCD Camera Plastic Sorting Machine


Product Description

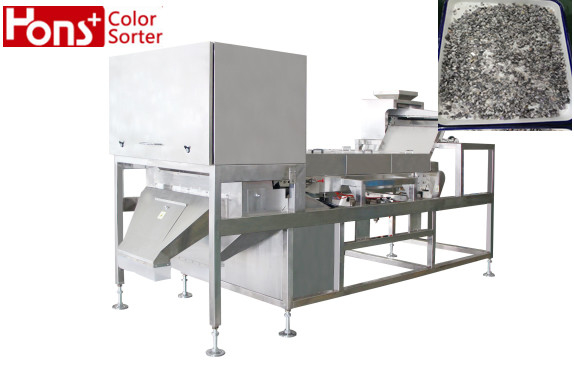

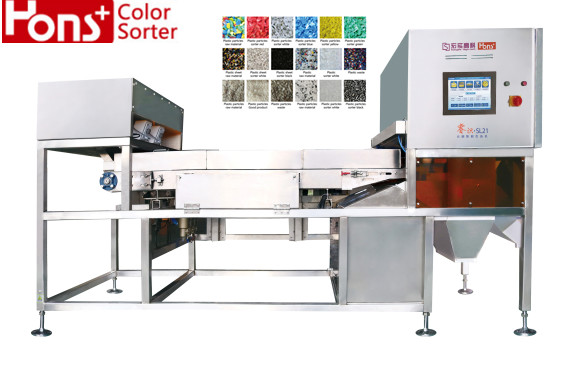

Remote Control CCD Camera Industrial Plastic/Quartz Color Sorting Machine



Belt color sorter machine features

1. Automatically collecting hyper space data such as color,shape,size,and defect to achieve accurate acquisition of raw materila features

2. The world's leading full-color linear array scanning technology and DPS+FPGA parallel multi-line pipeline processing technologgy to solve the problem, use multiple intelligent algorithm, high accuracy sorting, special for small speck, light yellow, chalky, discolor.

3. The self-developed magnetically controlled high-frequency solenoid valve achieves flexible contact between devices and has a service life of more than 6 to 10 billion times. Meanwhile, intelligent repair technology reduces maintenance costs and extends liofetime of valve.

4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the material selection requirements and the changes of enviroment to guarantee the sorting perfoermance.

5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple functions of one machine, user-friendly control and easy to operate.

6. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring teh sorting accuracy and improving machine efficient.



Belt CCD color sorter machine parameters



Brand Hons+
Sorting Accuracy(%):
≥99.9
Carryover Rate(bad:good):
≥12:1
Capacity:(kg/hour) 400Kg-500Kg
Voltage:
220V/50Hz
Weight(kg): 2300
Diamension/Size (L*W*H)mm 2920*1220*1720
Package:
Wooden Case



Selection of materials



Rice: white/black/red/yellow/barley rice

Wheat: buckwheat/quinoa/oatmeal

Corn: corn particles/white corn/ ellowcorn/black corn

Beans: soybeans/mungbeans/red beans/broad beans

Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry onion/ raisins/dried chilli

Seeds: sunflower seeds/ rice seeds/ vegetable seeds

Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag



Sorting perofrmance

CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control 0

CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control 1

CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control 2



Why choose Hons+



1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.



CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control 3

CCD Camera Industrial Plastic / Quartz Sorting Machine Remote Control 4
