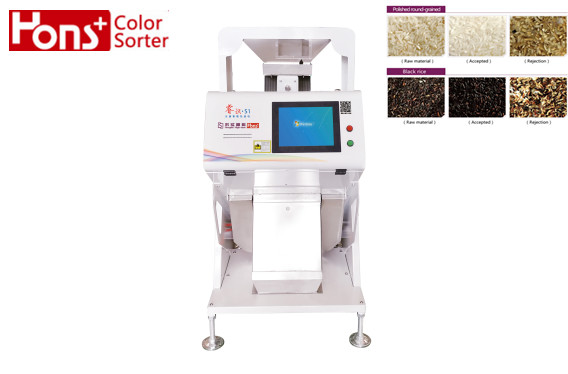

CCD Camera Rice / Beans / Corn Sorting Machine Mini Type

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons
Certification: CE/SGS
Model Number: 6SXM-63(CCD)A
Minimum Order Quantity: 1 pc
Price: $6500-$8500
Packaging Details: Wooden case
Delivery Time: 5-8 working days
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 500sets/month
Detail Information
Product Name: Rice Color Resorter Input Voltage: AC220V/50HZ
Capacity(T/H): 0.6-1T/H Prouct Size: L 910mm * W 1620mm * H 1550mm
Power(KW): ≤1.5 Product Weight: 350kgs
Warranty: 1 Year Channel: 63 Channels
CCD Sensor: Toshiba Feature: High Quality FPGA Processing
High Light:

Mini Type Corn Sorting Machine


CCD Camera Corn Sorting Machine


CCD Camera Beans Sorting Machine

Product Description

CCD Camera Rice/Beans/Corn Color Sorting Machine Mini Type Processing Line


Sorting Materials:


1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils

2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine

4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp

7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory


CCD color sorter machine parameters


Name S1 S3 S5 S7
Model 6SXM-63 6SXM-189 6SXM-315 6SXM-441
Capacity(Kg/H) 800Kg-1000Kg 2000Kg-3000Kg 3000Kg-4000Kg 5000Kg-6000Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.4 <3.0 <4.0
Weight(KG) 350Kg 800Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1628*1595*2040 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 7.5Kw 11kw*2 15kw*2
Air tank   600L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03


CCD color sorter machine strength


Cloud braininterconnection


1Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
2. Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
3. Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
4. Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.


Cloud brain vision

Intelligent image acquisition system

Automatically collecting hyper space data such as color, shape, size and defect to achieve accurate acquisition of raw material features.


International leading full color high speed three-line scanning CCD sensor (54 million pixel *3), perfect processing of small defects in materials, the minimum scanning and identification area can reach 0.2mm * 0.2mm=0.04mm²; Meanwhile, multi-thread processing capacity for "Color + Shape" .


Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 0


Sorting Perofrmance


Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 1

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 2
Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 3

CCD Camera Rice / Beans / Corn Sorting Machine Mini Type 4




1. How to use the machine?
We will supply customer the installation catalog or video online.

We will ask our engineer to teach you, how to use when he go to your country to debug the machine.

2. How about the sample machines for testing?
Sample sending for testing is welcomed.

Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.

3. How about the guarantee period?
One year.


Why choose us

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.


 Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 4

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 5
