| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S3 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$13500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Capacity(T/h): | 1.0-2.0 | Voltage(V): | AC220V/50Hz |
|---|---|---|---|
| Power（Kw）: | 2.4 | Weight(Kg): | 800 |
| Dimension(L*W*Hmm): | 1628*1595*2040 | Light Source: | LED |
| Applied Materials: | Rice/Beans/Peanut/Walnut | Chute/Channels: | 3Chutes/189Channels |
| High Light: | Three Chutes CCD Color Sorter,Cashew Nut Color Sorter 189 Channels,LED Light Cashew Nut Color Sorter |
||

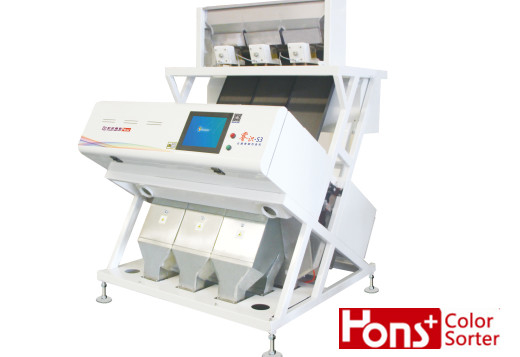

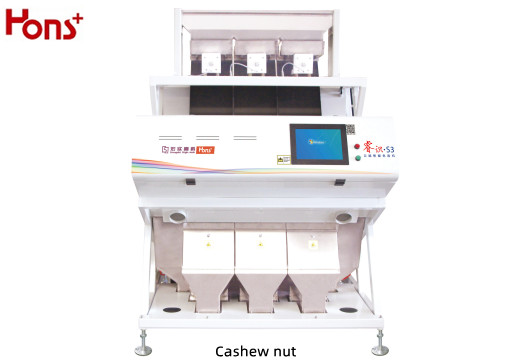

CCD Camera Separator Machine Cashew Nut Color Sorting Processing Machine
Product Features:
High clear imaging,Nikon CCD camera
Super clear imaging, resolution ratio,color reduction well, no distortion.
International honour brand Weinview touch screen
Swift reaction, high sensitivity, reliable,easy operation.
High luminance LED resource
High luminance, low power consumption ,long life,reliable.
High frequency solenoid valve
Special for color sorting,high frequency, low power consumption,high sorting accuracy.
The advanced operation system
It be widely used for beans, nuts, seeds, peanut, nutlet, sea products, small herds, spices and other materials of high accuracy sorting.
CCD color sorter machine parameters
| Name | S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Sorting materials
1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory
Sorting performance
FAQ
1. How many days for production? In general,within8-12workers days after getting deposit payment. 2. Are you a trading company or a factory,will it be cheaper to buy from your side? More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service. The same quality, more favorable price. 3. Do you provide product installation,training and after-sales service? Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site. 4. We are small buyer , can we buy your products locally , do you have local agents? If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you. About us 1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui. 2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug. 3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries. 4. Quality assurance of raw materials: the raw material we purchase are certified qualified products. 5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
