| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $12500-$19000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 1.6-2.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250 | Applicable Material: | Rice/Food/Seasame/Peanut |
| Pixels: | 54 Million | Feature: | High Sensitivity |

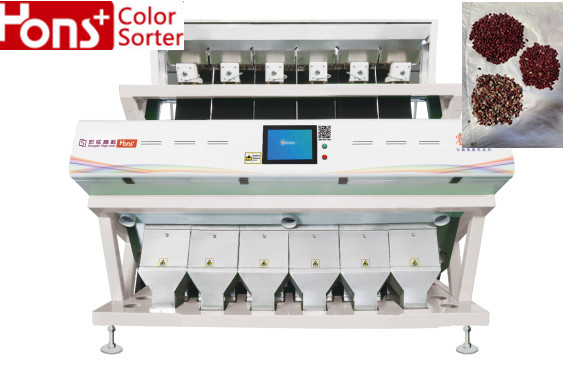

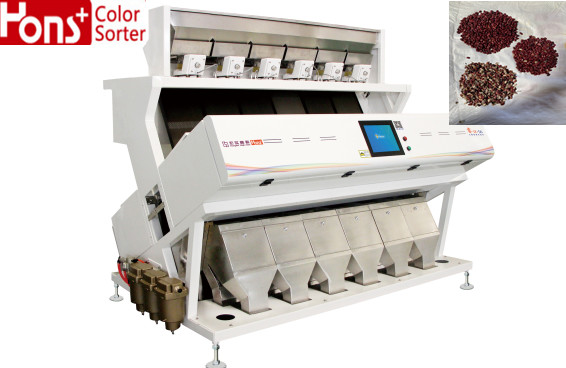

| Product Name: | CCD Color Sorter | ||
| High Light: | RGB Camera Colour Sorting Machine,RGB Camera Coffee Bean Sorting Machine,Colour Sorting Machine Multiple Function |
||
Machine parameters
| Name | S1 | S3 | S4 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-252 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 1600Kg-2000Kg | 2000KG-3000KG | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <2.6 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1000KG | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 1870*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11KW | 11kw*2 | 15kw*2 |
| Air tank | 600L | 800L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
Technical characteristic
1. Automatically collect hyperspace data such as color, shape, size, defect, etc., to achieve accurate acquisition of original material characteristics
2. The world's leading full-color line scanning technology and DPS+FPGA parallel multi-line pipeline processing technology solve problems, adopt a variety of intelligent algorithms, and have high sorting accuracy, which is specially used for small spots, light yellow, chalk and discoloration.
3. The self-developed magnetically controlled high-frequency solenoid valve realizes flexible contact between devices, with a service life of more than 6 to 10 billion times. At the same time, the intelligent maintenance technology reduces maintenance costs and prolongs the service life of the valve.
4. Advanced digital stepless intelligent dimming technology can automatically match the best brightness according to material selection requirements and environmental changes to ensure sorting performance.
5. The intelligent operation platform can store 100 kinds of sorting modes, which can realize the multi-purpose of one machine, humanized control and simple operation.
6. The patented intelligent dust removal system can quickly remove the light objects and dust attached to the material, ensure the sorting accuracy and improve the efficiency of the machine.
Sorting performance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
Why choose Hons+
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 20 countries with high praise from customers.
