| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$18000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.0t-4.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

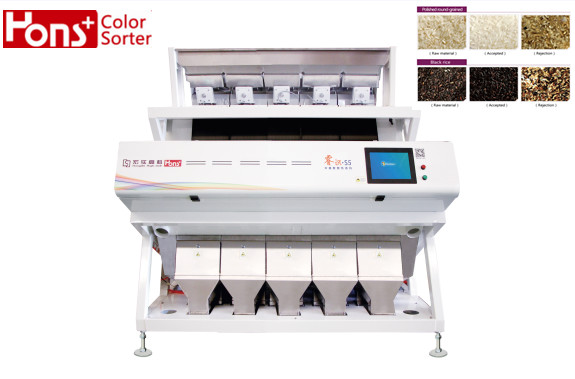

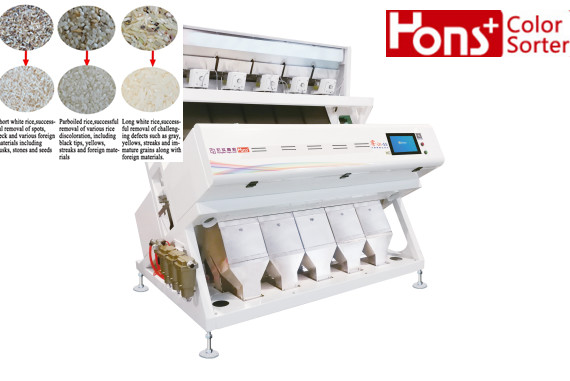

| Product Name: | CCD Color Sorter | Light Source: | LED |
| High Light: | 54 Million CCD Optical Color Sorter,54 Million Pixels optical sorting machine,Rice Color Sorter High Sensitivity |
||
1. The color sorter adopts 5400+ high-performance CCD sensor with a resolution of 0.1mm.
2. The sorting machine adopts high-quality industrial special lenses specially designed and manufactured for color sorting.
3. High-speed FPGA technology signal processor, fast detection speed and high recognition rate.
4. The whole machine adopts intelligent closed-loop control.
5. The parameter setting is simple and the operation is simple.
6. Adopt high-speed air volume value to ensure fast response, low power consumption and long service life.
7. The sorting machine adopts intelligent temperature and air pressure control technology to ensure that the whole machine is in the best running state.
Technology parameters
Name
|
S1
|
S2
|
S5
|
S6
|
Model
|
6SXM-63
|
6SXM-126
|
6SXM-315
|
6SXM-378
|
Capacity(Kg/H)
|
300Kg-400Kg
|
300Kg-800Kg
|
1200Kg-1600Kg
|
1800Kg-3000Kg
|
Voltage(V)
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
POWER(KW)
|
<1.5
|
<2.0
|
<3.0
|
<3.6
|
Weight(KG)
|
350Kg
|
500Kg
|
1250Kg
|
1400Kg
|
Dimension(L*W*H/MM)
|
910*1620*1550
|
1220*1620*1550
|
2210*1595*2040
|
2528*1595*2040
|
Air Consumption
|
0.9 m³/min
|
1.8m³/min
|
1.8 m³/min
|
3 m³/min
|
Air pressure
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
Air compressor power
|
4kw
|
5.5Kw
|
11kw*2
|
15kw*2
|
Air tank
|
|
300L
|
1000L
|
1000L
|
Cooling Model
|
wind cooling
|
wind cooling
|
wind cooling
|
wind cooling
|
Mini Resolution( mm²)
|
0.03
|
0.03
|
0.03
|
0.03
|
Food material: rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc. Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc. Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
Sorting performance
FAQ
1. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
2. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
3. How about the guarantee period?
One year.
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
