| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXL-126D |
| Minimum Order Quantity: | 1 Set |
| Price: | $12000-$21000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | SL21 | Capacity: | 500kg /H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.5KW |
| Size: | L 2920mm * W 1220mm * H 1720mm | Weight: | 2300KGS (+/-5%) |
| Light Source: | LED | Applied Materials: | Dried Food/vegetables/sea Food/nut |
| High Light: | 500kg /H Belt Color Sorting Machine,Dehydrated Broccoli Belt Color Sorting Machine,Dehydrated Broccoli CCD Color Sorter |
||

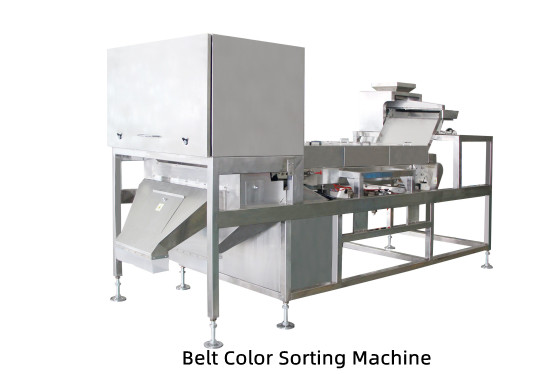

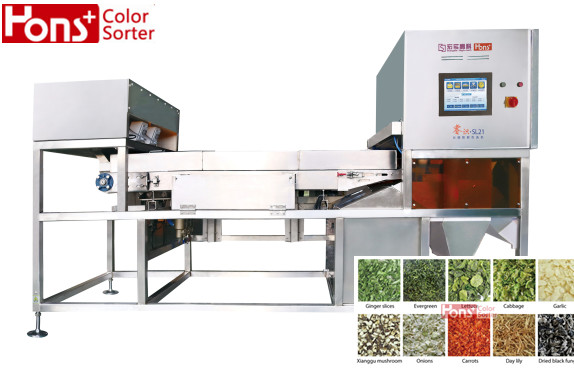

Dehydrated Broccoli Vegetables Food Belt Color Sorting Machine Production
Belt color sorter machine features 1. Automatically collect hyperspace data such as color, shape, size, defects, etc., to achieve accurate acquisition of original material features. 2. The world's leading full-color line scanning technology and DPS+FPGA parallel multi-line pipeline processing technology solve problems, adopt a variety of intelligent algorithms, and have high sorting accuracy, which is specially used for small spots, light yellow, chalk and discoloration. 3. The self-developed magnetically controlled high-frequency solenoid valve realizes flexible contact between devices, with a service life of more than 6 to 10 billion times. At the same time, the intelligent maintenance technology reduces maintenance costs and prolongs the service life of the valve. 4. Advanced digital stepless intelligent dimming technology can automatically match the best brightness according to material selection requirements and environmental changes to ensure sorting performance. 5. The intelligent operation platform that stores 100 sorting modes can realize multiple functions of one machine, humanized control and simple operation. 6. The patented intelligent vacuuming system can quickly remove the light objects and dust attached to the material, ensure the sorting accuracy and improve the efficiency of the machine.
Belt CCD color sorter machine parameters
| Brand | Hons+ |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 400Kg-500Kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 2300 |
| Diamension/Size (L*W*H)mm | 2920*1220*1720 |
| Package: |
Wooden Case
|
Selection of materials
Rice: white/black/red/yellow/barley rice
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Beans: soybeans/mungbeans/red beans/broad beans
Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag
Sorting perofrmance
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
