| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$18000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.0t-4.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

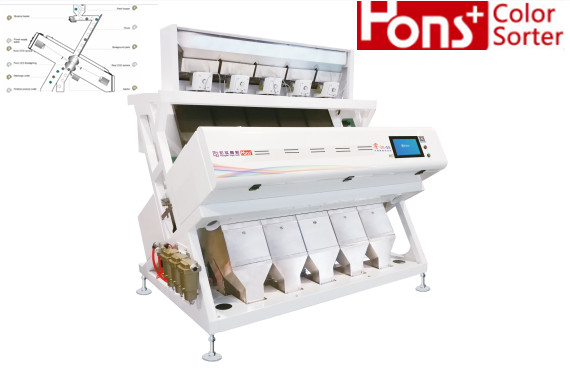

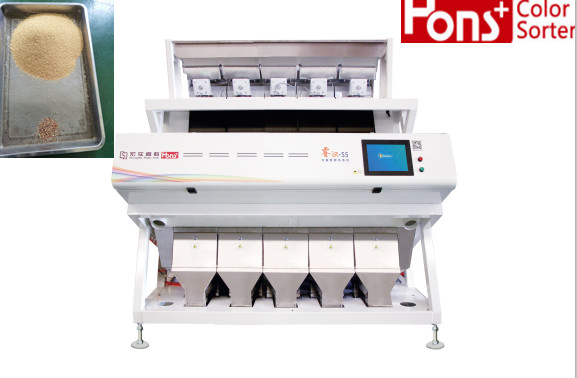

| Product Name: | CCD Color Sorter | Light Source: | LED |
| High Light: | Quinoa Grain Color Sorting Machine,High Sensitivity Grain Color Sorting Machine,Grain Colour Sorter High Sensitivity |
||
1. The color sorter uses 5400+ high performances CCD sensors with resolution up 0.1mm. 2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting. 3. The high speed FPGA technology signal processor with fast detection and high identification rate. 4. Overall unit adopts intelligent closed-loop control. 5. Simple parameters setting and esay operation. 6. High speed air value is used to ensure quick response, low power consumption and long service life. 7. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine. 8. Failure alarm automation and modular construction makes easy repair.
Technology parameters
Name
|
S1
|
S2
|
S5
|
S6
|
Model
|
6SXM-63
|
6SXM-126
|
6SXM-315
|
6SXM-378
|
Capacity(Kg/H)
|
300Kg-400Kg
|
300Kg-800Kg
|
1200Kg-1600Kg
|
1800Kg-3000Kg
|
Voltage(V)
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
POWER(KW)
|
<1.5
|
<2.0
|
<3.0
|
<3.6
|
Weight(KG)
|
350Kg
|
500Kg
|
1250Kg
|
1400Kg
|
Dimension(L*W*H/MM)
|
910*1620*1550
|
1220*1620*1550
|
2210*1595*2040
|
2528*1595*2040
|
Air Consumption
|
0.9 m³/min
|
1.8m³/min
|
1.8 m³/min
|
3 m³/min
|
Air pressure
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
0.6-0.8mpa
|
Air compressor power
|
4kw
|
5.5Kw
|
11kw*2
|
15kw*2
|
Air tank
|
|
300L
|
1000L
|
1000L
|
Cooling Model
|
wind cooling
|
wind cooling
|
wind cooling
|
wind cooling
|
Mini Resolution( mm²)
|
0.03
|
0.03
|
0.03
|
0.03
|
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Sorting performance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.
3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.
4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
