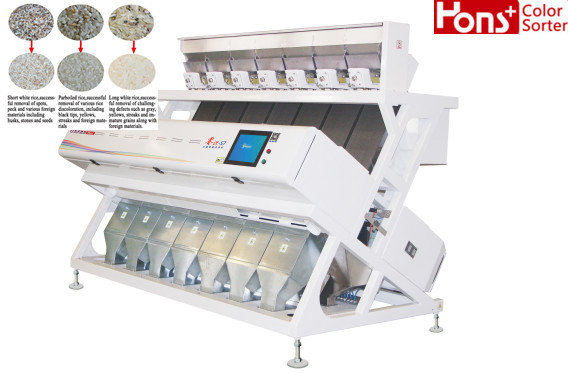

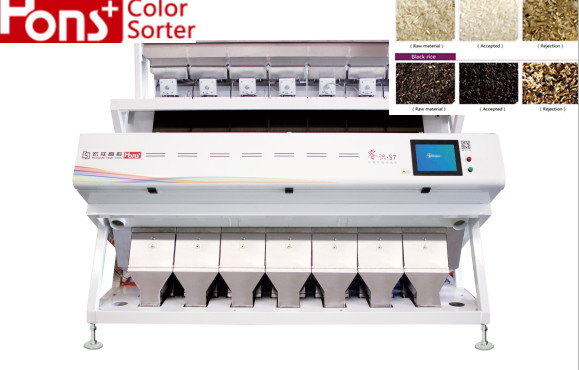

CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S7
Minimum Order Quantity: 1 set
Price: $13500-$20000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 4.0 Dimension(L*W*Hmm): 2836*1595*2040
Capacity(T/h): 3.0t-4.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1600kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter Sorting Accuracy: 99.9%
High Light:

High Capacity Colour Sorting Machine

,

Mill Factory CCD Color Sorter

,

Rice Color Sorter High Capacity


Product Description

CCD Camera Color Sorting Separator Machine Rice Mill Factory High Capacity

Main Components

1. The infrared color sorter includes a color LED camera system and a near-infrared spectrum lighting system.



2. The color LED lighting system can choose different spectral lighting according to different raw materials, improve the contrast of main features, and ensure that the obtained material information is more accurate.



3. The LED lighting system with heat dissipation has long service life, low energy consumption and good performance. The near-infrared spectrum lighting system adopts the light source imported from Germany.



4. Uniform illumination, low energy consumption and stable performance.



Technology parameters




Name
S1 S2 S5 S7
Model 6SXM-63 6SXM-126 6SXM-315 6SXM-441
Capacity(Kg/H) 300Kg-400Kg 300Kg-800Kg 1200Kg-1600Kg 1500Kg-2400Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <3.0 <4.0
Weight(KG) 350Kg 500Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*15500 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 5.5Kw 11kw*2 15kw*2
Air tank   300L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03



CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity 0

Sorting materials

Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice

Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea

Tea: green tea/black tea/dark tea/white tea/ yellow tea

Cereals: corn/barley/wheat/oat/sesame/malt

Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed

Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio

Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage

Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar



 Sorting performance

CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity 1

CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity 2







FAQ



1. How many days for production?


In general,within8-12workers days after getting deposit payment.


2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.


3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.





Why Choose Hons+:



1. More than 10 years of experience focusing on sorters. One of the most advanced manufacturers in Hefei, Anhui.
2. After-sales service guarantee: We have a professional after-sales service team, one-to-one customer service to help customers install and debug.
3. We have service stations in Southeast Asia and cooperative distributors in more than 50 countries.
4. Raw material quality assurance: The raw materials we purchase are all certified qualified products.
5. Quality process assurance: We have passed the authorization of CE and ISO quality management systems, and each production process is strictly carried out in accordance with the standards.
6. System test: Our technical engineers check the product performance, and even each component undergoes strict aging test to ensure that the factory products fully meet customer requirements.
7. Delivery guarantee: We have a professional packaging operation team and independent export qualifications to ensure that the products are delivered to customers safely and stably.



 CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity 3

CCD Camera Color Sorting Machine For Rice Mill Factory High Capacity 4
